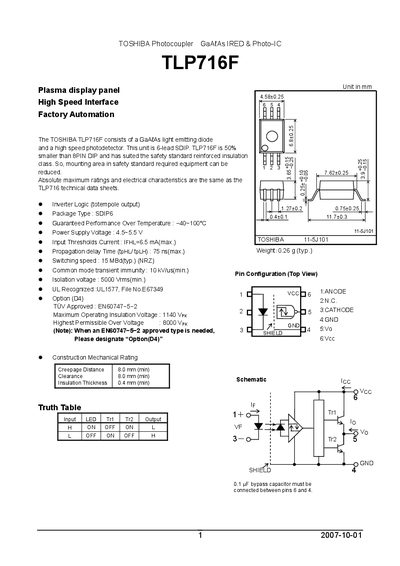

TLP716F is a photocoupler from TOSHIBA. It has GaAℓAs light emitting diode and high sensitivity photodiode, and is widely used in industrial control and automation fields.
The TLP716F is a GaAs light‑emitting diode and high‑speed photodetector packaged in a 6‑lead SDIP. It is designed for plasma display panels, factory automation, and other general electronics applications, offering a compact size and reinforced insulation class.
The document lists electrical characteristics such as a 4.5‑5.5 V supply range, 75 ns maximum propagation delay, and 15 MBd switching speed, as well as safety information including isolation voltage, creepage, and clearance requirements. Restrictions on unintended use and handling of GaAs are also detailed.
| Package Type | SDIP6 |
|---|---|
| Power Supply Voltage | 4.5~5.5 V |
| Input Threshold Current (IFHL) | 6.5 mA (max) |
| Propagation Delay Time | 75 ns (max) |
| Switching Speed | 15 MBd (typ) |
| Common‑mode Transient Immunity | 10 kV/µs (min) |
| Isolation Voltage | 5000 Vrms (min) |
| Creepage Distance | 8.0 mm (min) |
The recommended supply voltage is between 4.5 V and 5.5 V.
The device provides a minimum isolation voltage of 5000 Vrms.
