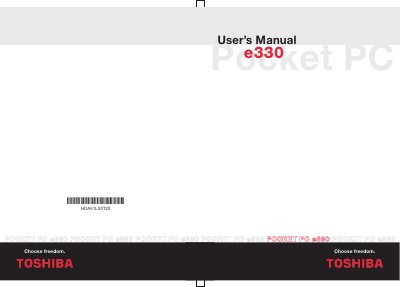

This is the User's Manual of Pocket PC e330
This manual introduces the Toshiba Pocket PC e330, covering safety precautions, handling warnings, and proper use in residential, commercial, and light‑industry environments. It explains environmental limits, battery safety, and the importance of using only the supplied AC adaptor and charger.
The later sections describe how to reset and initialize the device, list the technical specifications such as dimensions, weight, processor, display, and interfaces, and give additional information on compliance with low‑voltage and EMC directives.
| External dimensions | 80 mm (W) × 12.4 mm (D) × 125 mm (H) |
|---|---|
| Operating temperature range | 0 °C to 40 °C |
| Charging temperature range | 5 °C to 35 °C |
| Built‑in battery type | Lithium‑ion |
| Processor | Intel® PXA250 at 300 MHz |
| Display | 3.5" TFT LCD, 240 × 320 pixels, up to 64K colors |
| SD card slot | Supports SD, SDIO, or Multimedia cards |
| Infrared port | IrDA Ver.1.3, 115 kbps max |
| Headphone jack | 3.5 mm stereo mini plug |
| Input power supply | 100‑240 VAC, 50/60 Hz, 5 V × 2 A output |
Press the reset button with the stylus while the power is on, then release; the device will restart and any unsaved data will be lost.
Turn off the power, press the power button while holding the reset switch with the stylus, release the power button, then release the reset switch when the screen appears.
The device operates between 0 °C and 40 °C with 30 % to 80 % relative humidity.
It uses a rechargeable lithium‑ion battery.
