This document is a specification sheet for the MG24065G series of products, which introduces the product model, function, performance, technical parameters, etc.

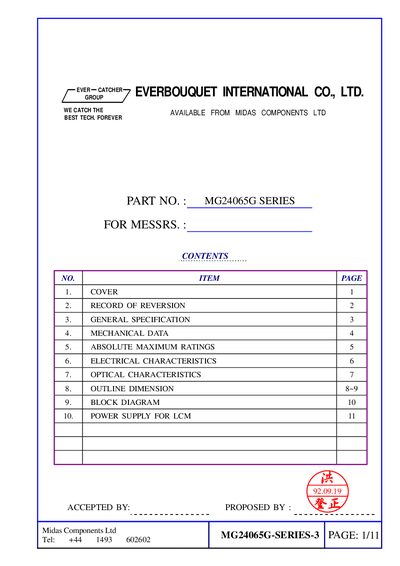

This document provides detailed specifications for the Everbouquet MG24065G Series LCD module, including general specifications, mechanical data, electrical and optical characteristics, and power supply requirements. It also contains a block diagram and outline dimensions for integration into equipment.
The datasheet covers absolute maximum ratings, recommended operating conditions, backlight options, and viewing angle information, serving designers and engineers who need precise technical data for product development and system integration.
| Dot resolution | 240 x 64 dots |
|---|---|
| Module size | 180.0 mm (W) × 65.0 mm (H) × C T (max) mm |
| Dot size | 0.49 mm × 0.49 mm |
| Backlight type | LED (also EL available) |
| Ambient temperature range | -20 °C to 70 °C |
The display has a resolution of 240 × 64 dots.
Both EL (electroluminescent) and LED backlights are supported.
The module can operate from –20 °C up to 70 °C.
