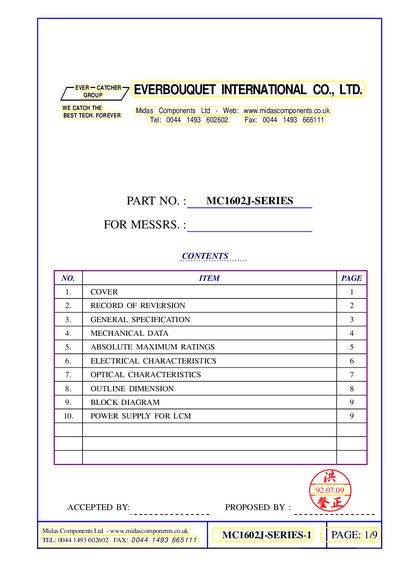

Everbouquet MC1602J Series Datasheet
This datasheet describes the MC1602J Series LCD module, a 16‑character by 2‑line display with various LCD types (TN, STN, FSTN). It includes general specifications, mechanical dimensions, absolute maximum ratings, and detailed electrical and optical characteristics.
The document also provides the outline dimensions, pin‑out connections, block diagram, and recommended power‑supply values for the LCD module and its backlight, enabling designers to integrate the display into their products.
EVERBOUQUET MC1602J-SERIES specifications
| Number of characters | 16 CH × 2 LINE |
|---|---|
| Module size (max) | 122.0 mm W × 44.0 mm H × 15.0 mm T |
| Effective area | 99.0 mm W × 24.0 mm H |
| Character size | 4.84 mm W × 8.06 mm H |
| Character pitch | 6.0 mm |
| Dot size | 0.92 mm W × 1.10 mm H |
| Power supply for logic (Vpp‑Vss) | 0 V to 6.0 V |
| Output voltage (Vou) | 0.205 V |
| LED backlight current | 170 mA – 270 mA |
| Viewing angle (6 o’clock) | 0° |
All EVERBOUQUET MC1602J-SERIES documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended LCD driving voltage for the MC1602J Series?
The recommended LCD driving voltage is 4.2 V for TN type and 4.5 V for STN/FSTN types.
What are the ambient temperature limits for normal operation?
Normal ambient temperature can be from 20 °C up to 70 °C.
How many characters and lines does the MC1602J Series display support?
The display supports 16 characters per line across 2 lines.
What is the maximum voltage that can be applied to the logic power supply?
The logic power supply can be between 0 V and 6.0 V.
