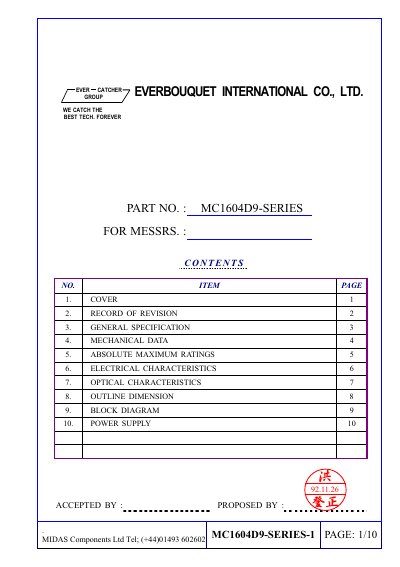

This is a product specification which provides detailed information about the features and parameters of the MC1604D9-SERIES product.
This document details the MC1604D9 series LCD modules supplied by MIDAS Components Ltd. It includes general specifications, mechanical dimensions, absolute maximum ratings, and both electrical and optical characteristics for each module variant.
The datasheet also presents the pin‑out outline, block diagram, and power‑supply requirements for the LCD and its LED backlight, giving designers the information needed to integrate the module into their products. This manual is written in Chinese.
| Module size (W×H×T) | 77.0 mm × 51.0 mm × 10.0 mm (max) |
|---|---|
| Effective display area | 61.8 mm × 25.2 mm |
| Character size | 2.96 mm × 4.16 mm |
| Number of characters per line | 16 characters × 4 lines |
| Power supply voltage (logic) | 5.0 V ±0.25 V |
| Input voltage range | 0 V to 6.0 V |
| Operating temperature (wide range) | -20 °C to 70 °C |
| Viewing angle (TN type) | 20° to 30° |
| Contrast ratio (STN type) | 10:1 |
The module operates from -20 °C to 70 °C in the wide temperature range.
Each line can display 16 characters, and the module has 4 lines.
The recommended driving voltage is 5.0 V ± 0.25 V (VDD).
The module measures 77.0 mm wide, 51.0 mm high, and up to 10.0 mm thick.
