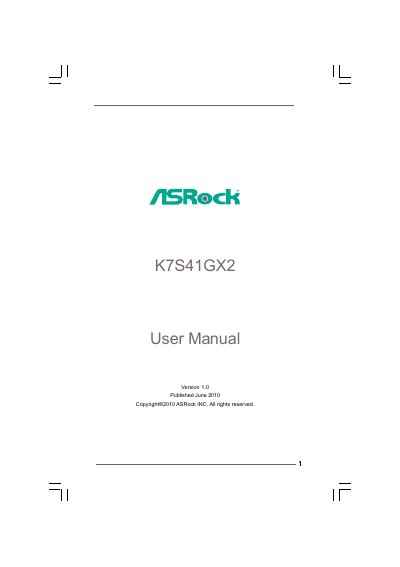

ASRock K7S41GX2 Motherboard User Manual

This is a K7S41GX2 user manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 291 KB
Published: 02 May, 2012
Updated: 01 October, 2023
Model: K7S41GX2
MD5 checksum: B6889475D336563996FB6623CC6F6D9F
PDF: ASRock K7S41GX2 Motherboard User Manual PDF

About this manual

This manual guides you through installing the ASRock K7S41GX2 motherboard, including CPU, memory, expansion cards, and connectors. It also covers BIOS configuration, power‑saving features, and troubleshooting tips.

Additional sections describe the support CD contents, driver installation, and operating system compatibility, as well as safety cautions for over‑clocking and handling of the lithium battery.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
I/O Panel
CPU Installation
Memory Module Installation
Expansion Slots
BIOS Setup Utility
Software Support

Specifications

Form Factor	Micro ATX (9.6" x 7.8")
CPU Socket	Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron
Chipset	Northbridge SiS 741GX, Southbridge SiS 963L
Audio	5.1‑channel AC’97 (C‑Media CMI9739A)
LAN	Realtek RTL8201EL, 10/100 Mbps
Rear Panel USB Ports	4 x USB 2.0
Supported Operating Systems	Microsoft Windows 2000 / XP

Frequently asked questions

What CPU socket does the ASRock K7S41GX2 motherboard use?

It uses a Socket 462 compatible with AMD Sempron, Athlon, Athlon XP, and Duron processors.

How much system memory can the K7S41GX2 support?

The motherboard supports up to 2 GB of DDR memory across its two DIMM slots.

How many USB 2.0 ports are available on the rear I/O panel?

There are four USB 2.0 ports on the rear panel.

Which operating systems are compatible with this motherboard?

It is compatible with Microsoft Windows 2000 and Windows XP.
