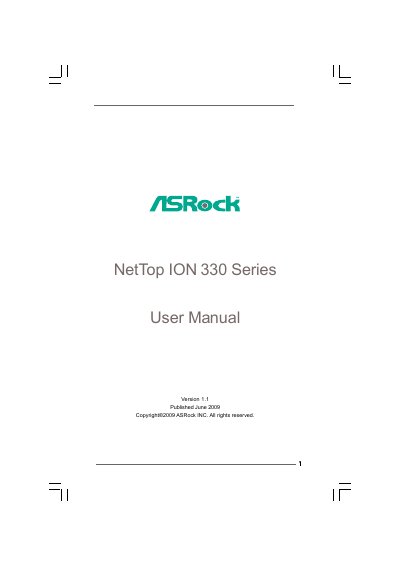

This document is the user manual for the 11111 NetTop ION 330 Series published by ASRock INC. The manual is version 1.1 and was published in June 2009. It provides detailed instructions and features of the product.
This manual introduces the ASRock NetTop ION 330 Series, a compact desktop computer designed for reliable performance and easy maintenance. It includes safety guidelines, hardware installation steps, and an overview of the system components.
Key sections cover quick hardware installation, detailed BIOS setup options, driver and utility installation from the Support CD, and supported operating systems. The document also lists technical specifications and provides troubleshooting advice.
| Processor | Intel® AtomTM 330 (Dual-Core CPU) |
|---|---|
| Chipset | NVIDI® ION™ graphics processor |
| Memory Support | DDR2 800MHz, 2 x DIMMs, up to 4 GB |
| Graphics | NVIDIA® ION™ Graphics, DX10 / Full HD 1080p |
| I/O Ports | 1 HDMI, 1 D‑Sub VGA, 6 USB 2.0, 1 S/PDIF (Optical) |
| Power | 65 W / 19 V Adapter |
| Dimensions | 195 mm (W) × 70 mm (H) × 186 mm (L) |
| Weight | 1.75 kg |
The system supports Microsoft Windows XP, Windows XP 64‑bit, Windows Vista, and Windows Vista 64‑bit.
Insert the Support CD into the CD‑ROM drive; it will auto‑run the Main Menu if Autorun is enabled, otherwise run ASSETUP.EXE from the BIN folder.
Do not place the system near water or heat sources, keep ventilation openings clear, and operate it on a stable surface within 0 °C to 40 °C ambient temperature.
