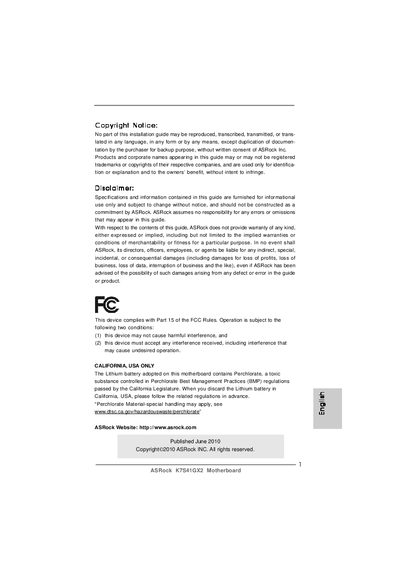

This document is the installation guide for the ASRock K7S41GX2 motherboard. The document provides copyright notice, disclaimer, specifications, and information about the motherboard. The motherboard belongs to the ASRock brand.
This guide provides an overview of the ASRock K7S41GX2 motherboard, including its form factor, supported CPUs, chipset details, memory limits, and expansion options. It also lists the connectors and ports found on the board and explains the BIOS features.
Step‑by‑step installation instructions cover package contents, mounting, cable connections, and BIOS configuration, along with cautions for safe handling and over‑clocking. The support CD and additional utilities are described at the end of the document.
| Form Factor | Micro ATX (9.6‑in x 7.8‑in, 24.4 cm x 19.8 cm) |
|---|---|
| CPU Socket | Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron |
| Chipset | Northbridge SiS® 741GX, Southbridge SiS® 963L |
| Memory | 2 DDR DIMM slots, DDR 400/333/266 non‑ECC, max 2 GB |
| Expansion Slots | 1× AGP 8X/4X, 1× AMR, 2× PCI |
| Integrated Graphics | Mirage Graphics, max shared memory 128 MB |
| Audio | 5.1‑channel C‑Media CMI9739A AC'97 codec |
| LAN | Realtek RTL8201EL, 10/100 Mbps Ethernet |
| USB Ports | 4× USB 2.0 ports on panel, 1× USB 2.0 header (2 ports) |
| BIOS | 2 MB AMI Legal BIOS, Plug‑and‑Play, ACPI 1.1, SMBIOS 2.3.1 |
It supports AMD processors that use Socket 462, including Sempron, Athlon, Athlon XP, and Duron models.
The board uses a 2 MB AMI Legal BIOS with Plug‑and‑Play support, ACPI 1.1 compliance, and SMBIOS 2.3.1 support.
