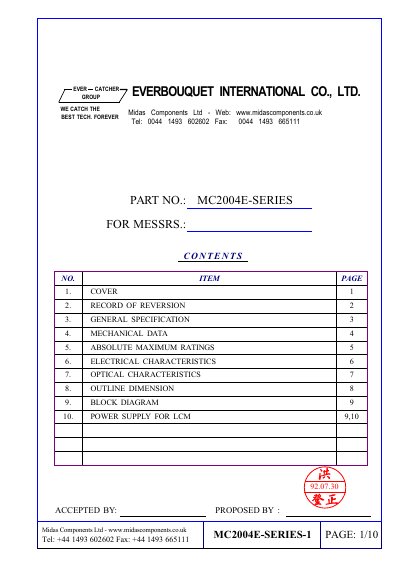

EVERBOUQUET MC2004E-SERIES
This datasheet describes the MC2004E series LCD modules manufactured by Everbouquet. It includes general specifications, mechanical dimensions, absolute maximum ratings, and detailed electrical and optical characteristics.
The document also contains the outline dimension pinout, block diagram, and recommended power supply information for both the logic and backlight circuits, helping designers integrate the module into their products.
EVERBOUQUET MC2004E-SERIES specifications
| Number of characters | 20 |
|---|---|
| Module size | 98.0 mm W × 60.0 mm H |
| Effective area | 76.0 mm W × 25.2 mm H |
| Power supply for logic (VDD‑VSS) | 0 V to 6.0 V |
| Operating temperature (wide range) | -20 °C to 70 °C |
| Backlight LED voltage | 5.0 V |
Source: EVERBOUQUET MC2004E-SERIES
All EVERBOUQUET MC2004E-SERIES documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended LCD driving voltage?
The recommended LCD driving voltage is about 4.2 V (VDD‑VO) for TN‑type LCDs.
What is the maximum input voltage for the module?
The maximum input voltage is 6.0 V.
What is the module size of the MC2004E‑SERIES LCD?
The module measures 98.0 mm wide by 60.0 mm high (maximum dimensions).
What is the recommended LCD driving voltage?
The recommended LCD driving voltage is about 5.0 V, with a possible fluctuation of ±0.5 V per module.
