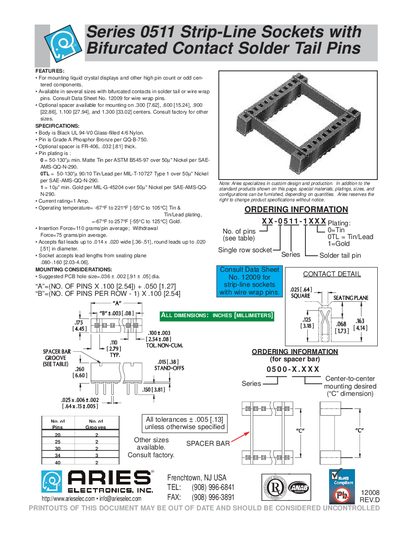

The document introduces Aries Series 0511 strip-line sockets with bifurcated contact solder tail pins, designed for mounting liquid crystal displays and other high pin count or odd centered components.
The Series 0511 strip‑line sockets are designed for mounting liquid crystal displays and other high‑pin‑count or odd‑centered components. They are offered with bifurcated contacts in solder‑tail or wire‑wrap pins and optional spacers for various center‑to‑center spacings.
The leaflet lists key specifications such as a black UL 94‑V0 glass‑filled nylon body, Grade A phosphor‑bronze pins, optional FR‑406 spacers, and a 1 A current rating. It also provides mechanical data like insertion force (110 g), withdrawal force (75 g), recommended PCB hole size (.036 in + .002 in), and acceptable lead dimensions.
| Body material | Black UL 94‑V0 glass‑filled 4/6 nylon |
|---|---|
| Pin material | Grade A phosphor bronze (QQ‑B‑750) |
| Optional spacer material | FR‑406, 0.032 in thick |
| Current rating | 1 A |
| Operating temperature range | -67 °F to 221 °F (‑55 °C to 105 °C) |
| Insertion force | 110 g per pin (average) |
| Recommended PCB hole size | 0.036 in + 0.002 in (0.91 mm + 0.05 mm) diameter |
The socket is rated for a maximum current of 1 ampere.
It can operate from –67 °F to 221 °F (‑55 °C to 105 °C).
A hole size of 0.036 in plus 0.002 in (approximately 0.91 mm + 0.05 mm) is recommended.
