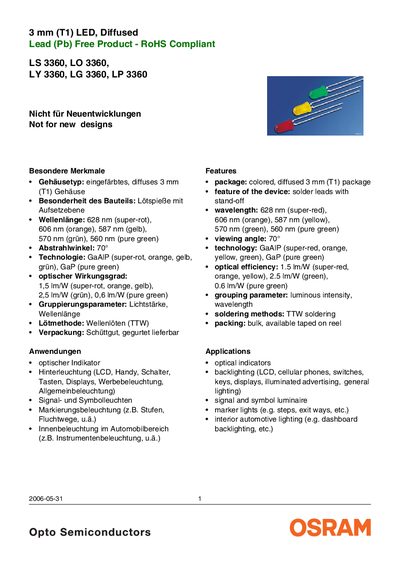

The document describes the features and characteristics of LS 3360, LO 3360, LY 3360, LG 3360, LP 3360 3 mm (T1) LED, including their package, wavelength, viewing angle, technology, and optical efficiency.
The LS 3360 series and its variants (LO, LY, LG, LP) are 3 mm diffused T1 LEDs available in five colors. They feature peak wavelengths of 628 nm (super‑red), 606 nm (orange), 587 nm (yellow), 570 nm (green) and 560 nm (pure green) with a 70° viewing angle and optical efficiencies ranging from 0.6 Im/W to 2.5 Im/W depending on color.
The document lists ordering codes, maximum ratings (forward current up to 40 mA, forward voltage typical 20 V, max 25 V, reverse voltage 12 V), operating temperature –55 °C to +100 °C, and detailed brightness and wavelength grouping tables. Application examples include backlighting, indicator lights, and interior automotive lighting. This manual is written in German.
| Peak wavelength (typical) | 628 nm (super‑red), 606 nm (orange), 587 nm (yellow), 570 nm (green), 560 nm (pure green) |
|---|---|
| Viewing angle | 70° |
| Optical efficiency | 1.5 Im/W (red/orange/yellow), 2.5 Im/W (green), 0.6 Im/W (pure green) |
| Operating temperature range | –55 °C to +100 °C |
The LEDs have a viewing angle of 70°.
They operate from –55 °C up to +100 °C.
Peak wavelengths are 628 nm (super‑red), 606 nm (orange), 587 nm (yellow), 570 nm (green) and 560 nm (pure green).
