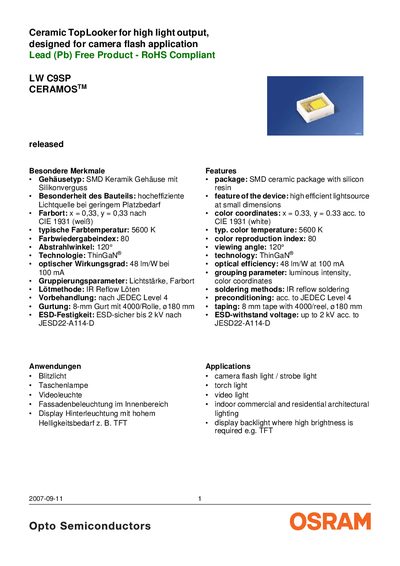

The LW C9SP CERAMOSTM Ceramic TopLooker is a high-light output ceramic light source designed for camera flash applications. The product is lead-free and RoHS-compliant.
The LW C9SP Ceramic TopLooker is a high‑efficiency SMD ceramic LED designed for camera flash, torch, video and architectural lighting. It features a thin‑GaN technology, 48 Im/W optical efficiency at 100 mA, a 120° viewing angle and a typical color temperature of 5600 K.
The document lists ordering codes, brightness‑group classifications, maximum ratings, and operating conditions. It also includes relative spectral emission data, revision history, and packaging/recycling instructions. This manual is written in German.
| Optical efficiency (100 mA) | 48 Im/W |
|---|---|
| Viewing angle | 120° |
| Typical color temperature | 5600 K |
| Forward current (IF) max | 500 mA |
| Junction temperature max | 175 °C |
| Operating temperature range | -40 °C to +110 °C |
| ESD withstand voltage | 2 kV |
The maximum forward current is 500 mA at 25 °C.
At 100 mA the LED reaches an optical efficiency of 48 Im/W.
