The LW M67C Hyper Mini TOPLED® Enhanced optical Power LED (ATON®) is a white light-emitting diode manufactured by OSRAM, Germany. This LED has small size, high luminous efficiency and high color purity. It is widely used in outdoor information display, backlight, automotive lighting, signal lights and identification lights.
The LW M67C is a compact, high‑efficiency InGaN LED designed for applications with limited space such as outdoor displays, backlighting, automotive interior lighting, and signal or marker illumination. It features a white SMT package with a colored diffused resin, a typical color temperature of 5600 K, a color rendering index of 80, and a Lambertian viewing angle of 120°.

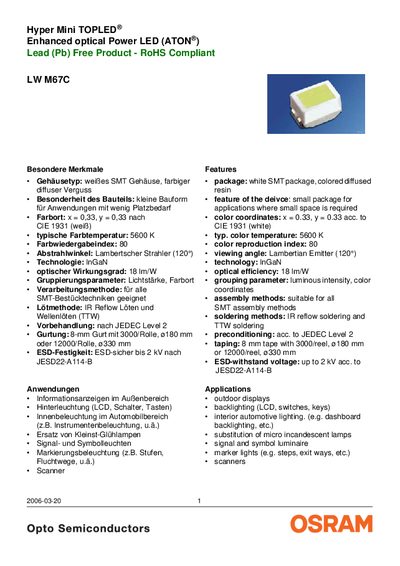

The document lists detailed electrical parameters (forward voltage, current limits, reverse voltage), thermal limits, and mechanical data, as well as ordering codes, brightness‑grouping schemes, and recommended assembly and soldering methods. It also includes revision history, patent references, and packaging/recycling instructions. This manual is written in German.
| Typical color temperature | 5600 K |
|---|---|
| Color rendering index (CRI) | 80 |
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 18 lm/W |
| Typical forward voltage | 3.6 V |
| Operating temperature range | -40 °C to +100 °C |
| Maximum junction temperature | +110 °C |
| Power consumption (25 °C) | 85 mW |
The typical forward voltage is 3.6 V.
The typical optical efficiency is 18 lm/W.
IR reflow soldering and TTW (wave) soldering are recommended.
