This document introduces a basic function tester with a range of 500V and 1000V, including functions such as DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, etc. The product features auto ranging, diode testing, continuity buzzer, true RMS, data hold, data logging, etc. The product comes in red and grey color, weighs 505g, and has dimensions of 97×202×46mm.
The UNI-T 500V/1000V multimeter provides a wide range of measurement capabilities for voltage, current, resistance, capacitance, and frequency. It includes special functions such as auto‑ranging, diode continuity, true RMS, data hold, data logging, and sleep mode.

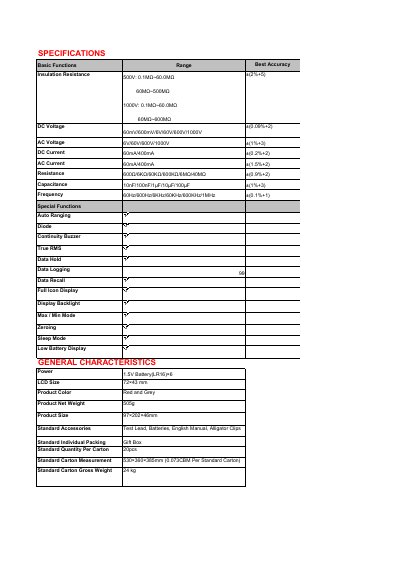

The leaflet details the device's technical specifications, battery requirements, LCD size, dimensions, weight, and the standard accessories supplied with the instrument.
| DC Voltage Range | 60 mV – 1000 V |
|---|---|
| AC Voltage Range | 6 V – 1000 V |
| Resistance Range | 600 Ω – 40 MΩ |
| Battery | 6 × LR16 (1.5 V each) |
| LCD Size | 72 mm × 43 mm |
It uses six LR16 1.5 V batteries.
The device offers auto ranging, diode continuity, buzzer, true RMS, data hold, data logging, data recall, full icon display, display backlight, max/min mode, zeroing, sleep mode, and low‑battery display.
