UT15C is a multifunctional voltage meter produced by Shanghai Yulite. It has the functions of measuring direct current voltage, alternating current voltage, resistance, etc. This product adopts precision high-quality components, high accuracy and good stability, and is an ideal choice for electrician maintenance, equipment testing, and school laboratories.
The UT15C provides visual LED indication for a wide range of AC/DC voltages, from 12 V up to 690 V, with specific voltage windows for each setting. It also includes a continuity test that lights an LED and sounds a buzzer, a phase‑rotation test, automatic range selection, polarity detection, and a low‑battery display.
The device is powered by two AAA batteries (1.5 V) and features a small LCD (23 × 12 mm). It is supplied in a red‑grey housing, weighs 210 g, and is packaged in standard blister packs of 30 units per carton.

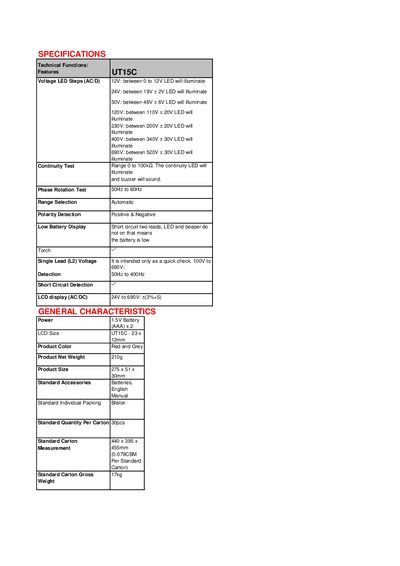

| Voltage LED illumination range (12 V) | 0 – 12 V |
|---|---|
| Voltage LED illumination range (24 V) | 19 V + 2 V |
| Continuity test range | 0 – 100 kΩ |
| Power source | 2 × AAA (1.5 V) batteries |
| LCD size | 23 × 12 mm |
| Net weight | 210 g |
When a continuity test is performed within the 0‑100 kΩ range, the continuity LED lights and a buzzer sounds.
