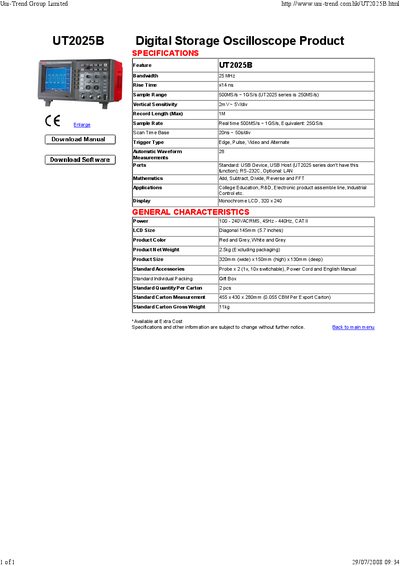

UT2025B Digital Storage Oscilloscope Product Specifications: Bandwidth 25 MHz, Rise Time ≤14 ns, Sample Range 500MS/s ~ 1GS/s (UT2025 series is 250MS/s), Vertical Sensitivity 2mV ~ 5V/div, Record Length (Max) 1M Sample Rate Real time 500MS/s ~ 1GS/s, Equivalent: 25GS/s, Scan Time Base 20ns ~ 50s/div, Trigger Type Edge, Pulse, Video and Alternate, Automatic Waveform Measurements 28, Ports Standard: USB Device, USB Host (UT2025 series don't have this function); RS-232C, Optional: LAN, Mathematics Add, Subtract, Divide, Reverse and FFT, Applications College Education, R&D, Electronic product assemble line, Industrial Control etc., Display Monochrome LCD, 320 x 240
The UNI‑T UT2025B is a digital storage oscilloscope designed for college education, R&D, and industrial control applications. It offers a 25 MHz bandwidth, 14 ns rise time, and a sample rate up to 250 MS/s (UT2025 series) with a maximum record length of 1 M points.
The unit features a 5.7‑inch monochrome LCD (320 × 240), USB Device/Host, RS‑232C, and optional LAN ports. Standard accessories include two switchable probes (1×/10×), a power cord, and an English manual. Power input ranges from 100‑240 VAC RMS, 45‑440 Hz, CAT II, and the device weighs 2.5 kg.
| Bandwidth | 25 MHz |
|---|---|
| Rise Time | 14 ns |
| Sample Rate (UT2025 series) | 250 MS/s |
| Vertical Sensitivity | 2 mV ~ 5 V/div |
| Record Length (Max) | 1 M points |
| Scan Time Base | 20 ns ~ 500 µs/div |
| Power Input | 100‑240 VAC RMS, 45‑440 Hz, CAT II |
| LCD Size | Diagonal 145 mm (5.7 inches) |
| Net Weight | 2.5 kg (excluding packaging) |
The UT2025B has a bandwidth of 25 MHz.
It includes USB Device, USB Host (function not available), RS‑232C, and an optional LAN port.
The package includes two switchable probes (1×/10×), a power cord, and an English manual.
