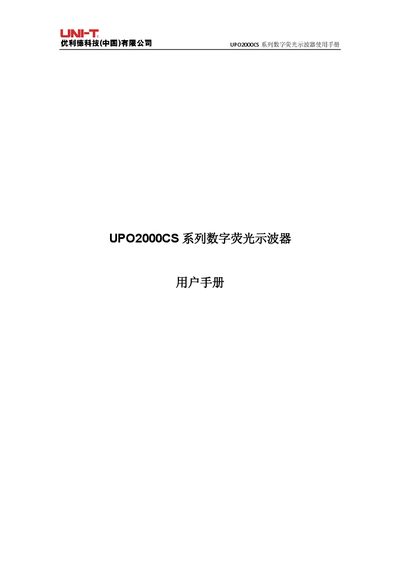

Official user manual for the UNI‑T UPO2000CS series digital phosphor oscilloscope, covering operation, safety, specifications and maintenance.
The UNI‑T UPO2000CS series digital phosphor oscilloscope manual provides detailed instructions for safe setup, operation, and troubleshooting of the instrument. It includes safety guidelines, front‑panel descriptions, and step‑by‑step procedures for configuring vertical, horizontal, trigger, and sampling systems.
Technical specifications, measurement functions, storage options, and warranty information are also presented, along with a list of accessories and contact details for service and support. This manual is written in Chinese.
| Input Impedance | 1 MΩ ± 2 % // 20 pF ± 3 pF |
|---|---|
| Maximum Input Voltage | CAT I 300 Vrms, CAT II 100 Vrms, Transient 1000 Vpk |
| Vertical Resolution | 8 bit |
| Display Resolution | 800 × 480 pixels (8‑inch WVGA TFT LCD) |
| Maximum Sampling Rate | 1 GS/s |
The warranty is three years from the date of purchase from UNI‑T or an authorized distributor.
The instrument operates from 0 °C to +40 °C; non‑operating storage range is –20 °C to +60 °C.
The oscilloscope supports a maximum real‑time sampling rate of 1 GS/s.
