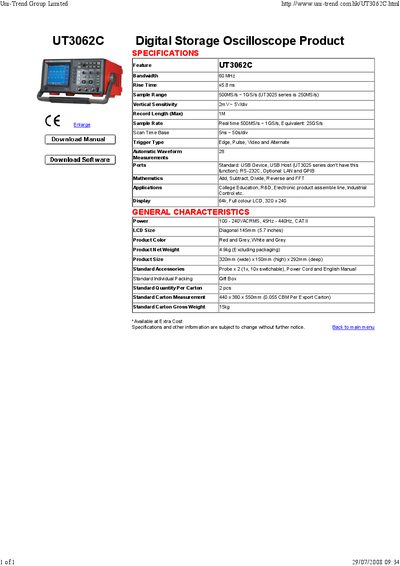

The UT3062C Digital Storage Oscilloscope features a bandwidth of 60 MHz, rise time of ≤5.8 ns, sample range of 500MS/s ~ 1GS/s (250MS/s for UT3025 series), vertical sensitivity of 2mV ~ 5V/div, maximum record length of 1M samples, real-time sample rate of 500MS/s ~ 1GS/s (equivalent to 25GS/s), scan time base of 5ns ~ 50s/div, trigger types including edge, pulse, video, and alternate, automatic waveform measurements with 28 ports, standard ports include USB Device, USB Host (not available in UT3025 series), RS-232C, optional ports include LAN and GPIB, mathematical functions include add, subtract, divide, reverse, and FFT, suitable for college education, R&D, electronic product assembly line, industrial control, etc., equipped with a 64k full-color LCD display with a resolution of 320 x 240.
This manual describes the UNI‑T UT3062C digital storage oscilloscope, covering its key specifications such as bandwidth, sample rate, vertical sensitivity, and trigger types. It also lists the standard accessories supplied with the unit, including probes, power cord, and an English manual.
General characteristics include power requirements, LCD size, product dimensions, weight, and optional connectivity options like LAN and GPIB. The document also provides packaging details and notes that specifications may change without notice.
| Bandwidth | 60 MHz |
|---|---|
| Rise Time | 5.8 ns |
| Sample Rate | 0SOMS/s ~ 1GS/s |
| Vertical Sensitivity | 2mV ~ SVidiv |
| Record Length (Max) | 1M |
| Trigger Type | Edge, Pulse, Video and Alternate |
| Standard Ports | USB Device, USB Host, RS‑232C (optional LAN, GPIB) |
| Mathematics Functions | Add, Subtract, Divide, Reverse, FFT |
| Display | 64k, Full colour LCD, 320 × 240 |
| Power Input | 100‑240 VAC RMS, 45‑440 Hz, CAT II |
| LCD Diagonal | 145 mm (5.7 inches) |
| Net Weight | 4.9 kg (excluding packaging) |
| Product Dimensions | 320 mm × 150 mm × 292 mm |
The bandwidth is 60 MHz.
It includes USB Device, USB Host, RS‑232C, and optional LAN and GPIB ports.
The unit comes with two switchable probes (1×, 10×), a power cord, and an English manual.
