The UT2062C Digital Storage Oscilloscope features a bandwidth of 60 MHz, rise time of ≤5.8 ns, sample range of 500MS/s ~ 1GS/s (UT2025 series is 250MS/s), vertical sensitivity of 2mV ~ 5V/div, maximum record length of 1M, real-time sample rate of 500MS/s ~ 1GS/s, equivalent to 25GS/s, scan time base of 10ns ~ 50s/div, trigger types include edge, pulse, video, and alternate, automatic waveform measurements with 28 ports, standard ports include USB Device, USB Host (not available in UT2025 series), RS-232C, optional LAN, mathematics functions include add, subtract, divide, reverse, and FFT, suitable for college education, R&D, electronic product assembly line, industrial control, etc.

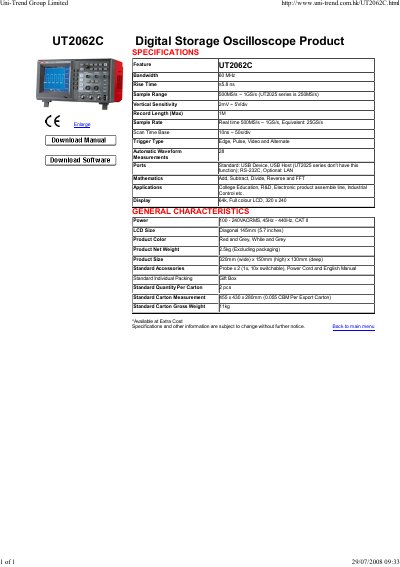

The UT2062C is a 60 MHz bandwidth digital storage oscilloscope designed for education, R&D, electronics assembly lines, and industrial control. This manual lists its key specifications, standard accessories, and interface options.
Key features include a sample rate of 500 MS/s to 1 GS/s, 28 automatic waveform measurements, multiple trigger types, and a full‑colour 5.7‑inch LCD display. The unit operates from 100‑240 VAC, weighs 2.5 kg, and ships with two probes, a power cord, and an English user manual.
| Bandwidth | 60 MHz |
|---|---|
| Rise Time | ≤5.8 ns |
| Sample Range | 500 MS/s ~ 1 GS/s |
| Vertical Sensitivity | 2 mV ~ 5 V/div |
| Record Length (Max) | 1 M |
| Real‑time Sample Rate | 500 MS/s ~ 1 GS/s (Equivalent: 25 GS/s) |
| Scan Time Base | 10 ns ~ 50 s/div |
| Trigger Types | Edge, Pulse, Video, Alternate |
| Automatic Waveform Measurements | 28 |
| Power Input | 100‑240 VAC RMS, 45‑440 Hz, CAT II |
| LCD Size Diagonal | 145 mm (5.7 inches) |
| Net Weight | 2.5 kg |
| Physical Dimensions | 320 mm × 150 mm × 130 mm |
| Standard Accessories | 2 probes (1×/10× switchable), power cord, English manual |
The UT2062C has a bandwidth of 60 MHz.
It provides 28 automatic waveform measurement functions.
