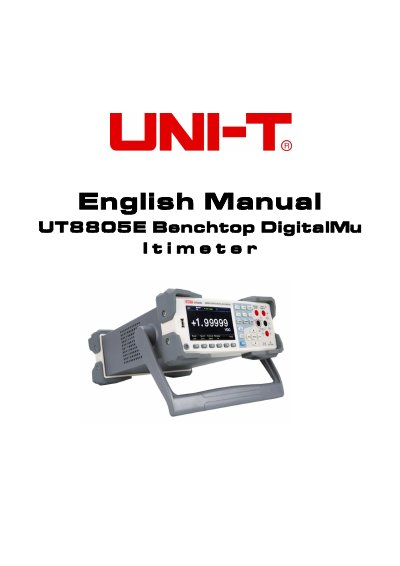

The UNI‑T UT8805E benchtop digital multimeter manual provides safety guidelines, operation steps, and measurement specifications.
The UT8805E is a 200 000‑count benchtop digital multimeter with a 4.3‑inch TFT display, offering high‑precision voltage, current, resistance, capacitance, frequency, and temperature measurements. It supports USB, LAN, RS‑232C and optional GPIB interfaces, making it suitable for laboratory and automated test environments.
The instrument complies with IEC 61010 safety standards, features IP65 water‑proof and dust‑proof protection, and includes over‑voltage safeguards up to 2500 Vpk. Proper grounding, use of the dedicated UNI‑T power supply wire, and adherence to the safety symbols are required for safe operation.
| Resolution | 200 000 count |
|---|---|
| DC Voltage Range | 200 mV – 1000 V |
| DC Current Range | 200 µA – 10 A |
| AC Voltage Range (True‑RMS) | 200 mV – 750 V |
| Input Impedance (100 Hz) | 1 MΩ |
| Ingress Protection | IP65 waterproof and dustproof |
It can safely withstand accidental transient over‑voltage up to 2500 Vpk.
The instrument includes 1 GB NAND FLASH storage for data and configuration files.
It supports USB, LAN, RS‑232C and optional GPIB interfaces.
