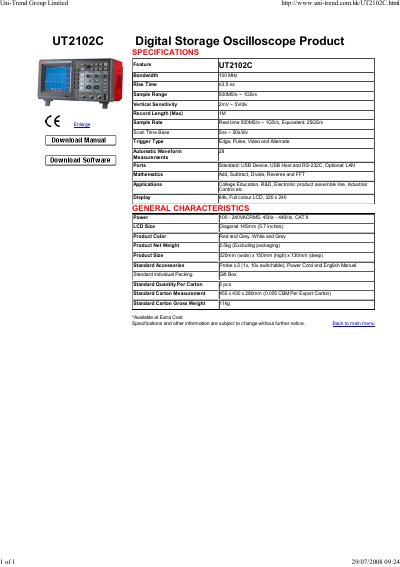

UT2102C is a digital storage oscilloscope from Uni-Trend. It has a bandwidth of 100MHz, a rise time of ≤3.5ns, a sample range of 500MS/s ~ 1GS/s, a vertical sensitivity of 2mV ~ 5V/div, a record length (maximum) of 1M, a sample rate of real time 500MS/s ~ 1GS/s, equivalent to 25GS/s, a scan time base of 5ns ~ 50s/div, a trigger type of edge, pulse, video and alternate, automatic waveform measurements of 28 ports, standard of USB device, USB host and RS-232C, optional of LAN, mathematics of add, subtract, divide, reverse and FFT, and applications of college education, R&D, electronic product assembly line, industrial control, etc.
The UT2102C is a digital storage oscilloscope featuring a 100 MHz bandwidth, sample rates from 500 MS/s to 1 GS/s (equivalent 25 GS/s), vertical sensitivity of 2 mV‑5 V/div, and a maximum record length of 1 M points. It offers a 64 k colour LCD (320 × 240) with a 5.7‑inch diagonal and supports edge, pulse, video and alternate trigger types.
The instrument includes 28 ports (USB Device, USB Host, RS‑232C, optional LAN), runs on 100‑240 VAC power, and measures 320 mm × 150 mm × 130 mm, weighing 2.5 kg. Standard accessories are two probes (1×/10× switchable), a power cord and an English manual, packed in a gift‑box with two units per carton.
| Bandwidth | 100 MHz |
|---|---|
| Sample Rate | 500 MS/s ~ 1 GS/s |
| Vertical Sensitivity | 2 mV ~ 5 V/div |
| Record Length (Max) | 1 M points |
| Scan Time Base | 5 ns ~ 50 s/div |
| Trigger Types | Edge, Pulse, Video, Alternate |
| Number of Ports | 28 (USB Device, USB Host, RS‑232C, optional LAN) |
| Power Input | 100‑240 VAC, 45‑440 Hz |
| LCD Size | 145 mm (5.7 inches) diagonal |
| Net Weight | 2.5 kg |
| Dimensions | 320 mm × 150 mm × 130 mm |
The UT2102C provides a bandwidth of 100 MHz.
It has 28 ports, including USB Device, USB Host, RS‑232C, and an optional LAN port.
The maximum record length is 1 M points.
It supports Edge, Pulse, Video and Alternate trigger types.
