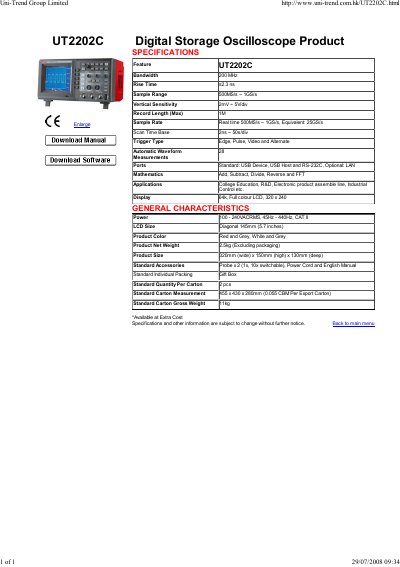

The UT2202C Digital Storage Oscilloscope is the second generation product of the UT2202 series. It adopts advanced technology and process, has higher sampling rate, wider bandwidth, higher performance and more affordable price. It is an ideal choice for engineers and technicians.
The UT2202C is a digital storage oscilloscope designed for education, R&D, production lines and industrial control. It provides a 200 MHz bandwidth, a sample range of 500 MS/s to 1 GS/s, and a variety of automatic waveform measurements.
Standard accessories include two probes (1×/10× switchable), a power cord and an English manual. The unit is supplied in a gift‑box, with two pieces per carton and optional LAN interface available.
| Bandwidth | 200 MHz |
|---|---|
| Rise Time | ≤2.3 ns |
| Sample Range | 500 MS/s ~ 1 GS/s |
| Vertical Sensitivity | 2 mV ~ 5 V/div |
| Record Length (Max) | 1 M samples |
| Automatic Waveform Measurements | 28 functions |
| Ports | USB Device, USB Host, RS‑232C, optional LAN |
| Power Input | 100‑240 VAC RMS, 45‑440 Hz, CAT II |
The UT2202C provides a bandwidth of 200 MHz.
It offers 28 automatic waveform measurement functions.
Standard interfaces are USB Device, USB Host and RS‑232C, with an optional LAN port.
