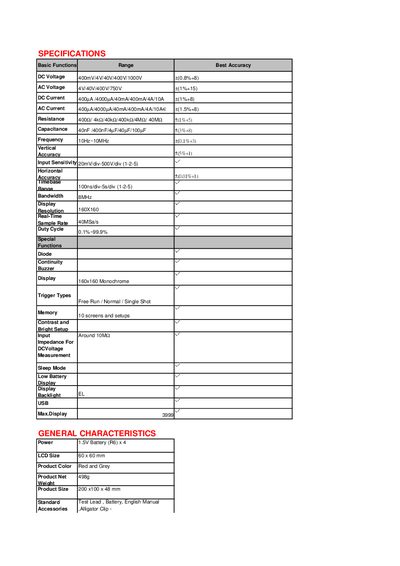

UNI-T - Basic Functions Range Best Accuracy DC Voltage 400mV/4V/40V/400V/1000V ±(0.8% 8) AC Voltage 4V/40V/4
Product Leaflet 2 pages · 23 KB · EN
This sheet lists the measurement ranges, accuracies and key features of a UNI‑T multimeter. It covers DC and AC voltage, DC and AC current, resistance, capacitance, frequency, and various display and timing specifications.
The document also details the power source, LCD size, weight, included accessories such as test leads, USB interface cable, optional probes, and packaging dimensions.
UNI-T 1000V specifications
| DC Voltage Range | 400 mV / 4 V / 40 V / 400 V / 1000 V |
|---|---|
| AC Voltage Range | 4 V / 40 V / 400 V / 750 V |
| DC Current Range | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A |
| AC Current Range | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A |
| Resistance Range | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Capacitance Range | 40 nF / 400 nF / 4 µF / 40 µF / 100 µF |
| Frequency Range | 10 Hz ~ 10 MHz |
| Display Resolution | 160 × 160 pixels, monochrome |
| Sample Rate | 40 MSa/s |
| Battery | 4 × 1.5 V AA batteries (R6) |
All UNI-T 1000V documents by type
Questions answered in these manuals
What type of battery does the multimeter use?
It uses four 1.5 V AA batteries (R6).
What is the display size of the device?
The LCD size is 60 mm × 60 mm.
What type of battery does the multimeter use?
It uses six LR16 1.5 V batteries.
Which special functions are available on the multimeter?
The device offers auto ranging, diode continuity, buzzer, true RMS, data hold, data logging, data recall, full icon display, display backlight, max/min mode, zeroing, sleep mode, and low‑battery display.
