OPTEK OVLEW3CB6 is a round, 5 mm white high-intensity lamp with a 30 degree viewing angle and standoffs. It is designed for applications that require high luminous intensity, such as indoor and outdoor displays, marker lights and optical indicators.
The OVLEW3CB6 white high‑intensity LED lamp is a round 5 mm device with a 30° viewing angle, designed for indoor/outdoor displays, billboards, message boards, storefront signage, and indicator applications. It features InGaN material, water‑clear lens, and is Pb‑free and ESD protected.

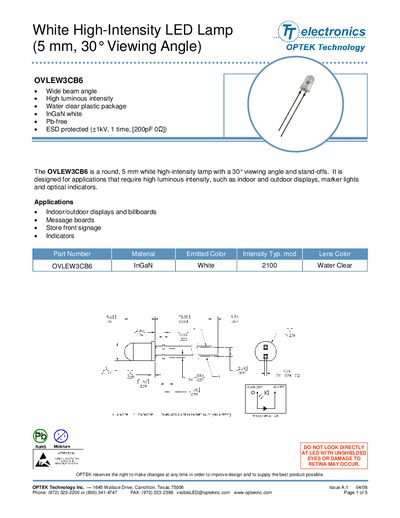

The datasheet provides absolute maximum ratings, electrical characteristics, chromaticity coordinates, beam pattern curves, and packaging options (bulk or reel with moisture‑resistant bags). Safety notes warn against looking directly at the unshielded LED to avoid eye damage.
| Luminous Intensity (typical) | 2100 mcd |
|---|---|
| Luminous Intensity (max) | 4200 mcd |
| Power Dissipation | 120 mW |
| Continuous Forward Current | 30 mA |
| Reverse Current | 100 mA |
| Operating Temperature Range | -30 °C to +85 °C |
| Storage Temperature Range | -40 °C to +100 °C |
The lamp has a 30° viewing angle.
Yes – do not look directly at the LED with unshielded eyes as it may cause retinal damage.
