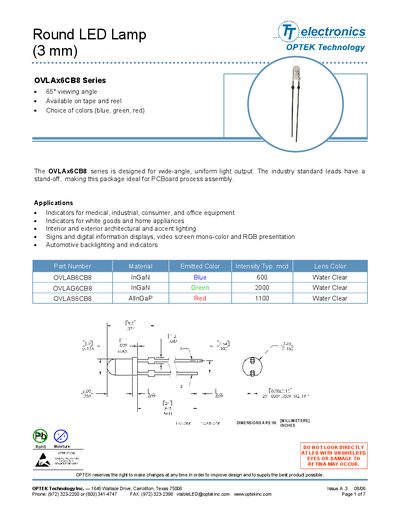

This document introduces the OVLAx6CB8 series of round LED lamps (3mm) by OPTEK, which have a viewing angle of 65° and uniform light output. The series is designed for indicators in medical, industrial, consumer, and office equipment, as well as indicators for white goods and home appliances, interior and exterior architectural and accent lighting, signs and digital information displays, automotive backlighting and indicators.
The OVLAX6CB8 series round LED lamp is a 3 mm package with a 65° viewing angle, available in blue, green, and red colors. It is suited for indicators in medical, industrial, consumer, office equipment, white goods, architectural lighting, signage, video displays, and automotive backlighting.
The data sheet provides absolute maximum ratings, electrical characteristics, standard luminous intensity bins, and typical electro‑optical curves for both blue and red devices. Packaging is moisture‑resistant with 500 pieces per bag.
| Viewing angle | 65° |
|---|---|
| Storage temperature range | -40 °C to +100 °C |
| Operating temperature range | -40 °C to +95 °C |
| Continuous forward current (Red) | 50 mA |
| Power dissipation (Red) | 130 mW |
| Typical luminous intensity (Blue) | 600 mcd |
| Typical luminous intensity (Red) | 1100 mcd |
| Dominant wavelength (Red) | 620‑635 nm |
The LED has a 65° viewing angle.
The series is offered in blue, green, and red.
It can be stored from –40 °C up to +100 °C.
