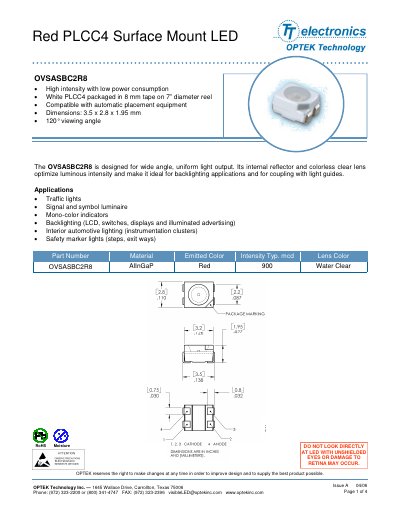

This document describes the features and characteristics of the red PLCC4 surface mount LED product produced by OPTEK. It includes high brightness, low power consumption, compatibility with automatic placement equipment, wide viewing angle, etc. The product is suitable for applications such as traffic lights, indicators, backlighting, and interior automotive lighting.
The OVSASBC2R8 is a high‑intensity red PLCC4 surface‑mount LED designed for wide‑angle, uniform light output. Its internal reflector and clear lens make it suitable for traffic lights, backlighting, automotive instrumentation, and safety marker applications.
Key specifications include a 3.5 × 2.8 × 1.95 mm package, 120° viewing angle, 70 mA continuous forward current (200 mA peak at 10 % duty), 5 V reverse voltage, and operation from –40 °C to +100 °C. The device is supplied on 7‑inch reels with 2 000 pieces per reel and moisture‑resistant packaging.
| Package dimensions | 3.5 x 2.8 x 1.95 mm |
|---|---|
| Viewing angle | 120° |
| Emitted color | Red |
| Typical luminous intensity | 900 mcd |
| Continuous forward current | 70 mA |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature max | 110 °C |
| Power dissipation | 225 mW |
| Reel load quantity | 2000 pieces per reel |
The LED provides a 120° viewing angle.
It operates from –40 °C up to +100 °C.
The maximum continuous forward current is 70 mA.
Each 7‑inch reel contains 2 000 pieces.
