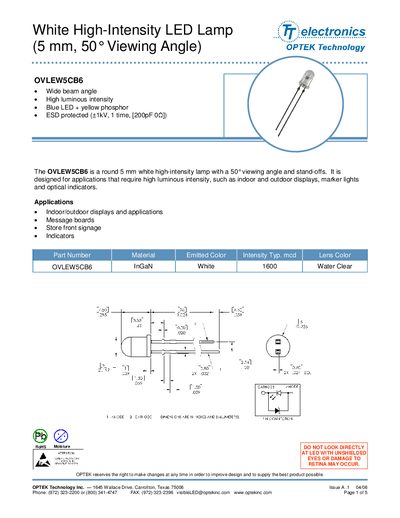

The OVLEW5CB6 is a 5 mm white high-intensity lamp with a 50° viewing angle and stand-offs. It is designed for applications that require high luminous intensity, such as indoor and outdoor displays, marker lights and optical indicators.
The OVLEW5CB6 is a round 5 mm white high‑intensity LED lamp designed for indoor/outdoor displays, message boards, storefront signage and indicator applications. It offers a wide 50° beam angle and high luminous output suitable for optical indicators and marker lights.
Key specifications include a typical forward voltage of 3.4 V at 20 mA, continuous forward current of 30 mA, power dissipation of 120 mW, and operating temperature range from –30 °C to +85 °C. The device is ESD protected up to +1 kV and is supplied in bulk (200 pcs) or on a 2000‑piece reel with moisture‑resistant packaging.
| Viewing Angle | 50° |
|---|---|
| Luminous Intensity (typical) | 1600 cd |
| Luminous Intensity (range) | 900–2600 cd |
| Forward Voltage (typical, 20 mA) | 3.4 V |
| Continuous Forward Current | 30 mA |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -30 °C to +85 °C |
| Storage Temperature Range | -40 °C to +100 °C |
| ESD Protection | +1 kV (single event) |
The LED has a 50° viewing angle.
The continuous forward current is rated at 30 mA.
It is ESD protected up to +1 kV for a single event.
It can be supplied in bulk (200 pieces) or on a 2000‑piece reel with moisture‑resistant packaging.
