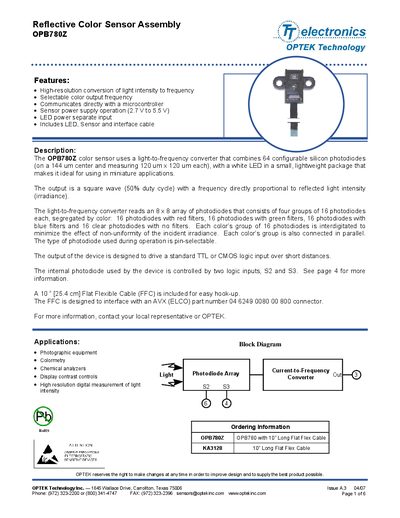

The OPB780Z reflective color sensor assembly features high-resolution conversion of light intensity to frequency, selectable color output frequency, direct communication with a microcontroller, sensor power supply operation (2.7 V to 5.5 V), and a separate LED power input.
The OPB780Z is a reflective color sensor that converts light intensity to a frequency output. It contains a 64‑photodiode array (8 × 8) with separate red, green, blue, and clear groups, and a built‑in white LED for miniature applications. The sensor output is a 50 % duty‑cycle square wave proportional to reflected light intensity, and it can be driven directly by TTL or CMOS logic.
The document lists absolute maximum ratings, recommended operating conditions, electrical and electro‑optical characteristics, and pin descriptions. It also includes typical performance curves, spectral response data, and wiring information such as the 10‑inch flat‑flex cable and its AVX connector.
| Supply Voltage (Vpp) | 2.7 V to 5.5 V |
|---|---|
| LED Forward Voltage (typical) | 2.8 V |
| Reverse Voltage | 5 V |
| Full‑Scale Frequency | 600 kHz |
| LED Luminous Intensity | 1.0 cd |
| Power Dissipation | 120 mW |
| Photodiodes | 64 (8 × 8 array) |
| FFC Connector | AVX (ELCO) 04 6249 0080 00 800 |
The sensor operates from 2.7 V up to 5.5 V supply voltage.
The full‑scale output frequency is 600 kHz.
The device contains 64 silicon photodiodes arranged in an 8 × 8 array.
It uses an AVX (ELCO) connector, part number 04 6249 0080 00 800.
