OPTEK OVSAABC2R8 is a surface mounted LED with amber emission. The product features high intensity, low power consumption, compatibility with automatic placement equipment, dimensions of 3.5 x 2.8 x 1.95 mm and a viewing angle of 120°. It is widely used in traffic lights, signal and symbol luminaires, monochrome indicators, backlighting, interior automotive lighting and safety marker lights.

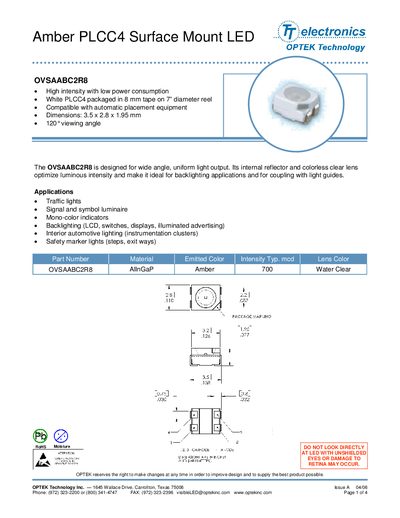

The OVSAABC2R8 is an amber PLCC4 surface‑mount LED designed for wide‑angle, uniform light output. Its internal reflector and clear lens give high intensity with low power consumption, making it suitable for backlighting, traffic lights, automotive instrumentation, and safety marker applications. The device is supplied in 8 mm tape on a 7‑inch reel, with 2000 parts per reel.
Key electrical and optical specifications include a continuous forward current of 70 mA, peak forward current of 200 mA (10 % duty), forward voltage of 2.6‑3.2 V at 50 mA, and luminous intensity ranging from 450 to 700 mcd. The LED operates from –40 °C to +100 °C and offers a 120° viewing angle with a dominant wavelength around 584‑596 nm.
| Package dimensions | 3.5 x 2.8 x 1.95 mm |
|---|---|
| Viewing angle | 120° |
| Continuous forward current | 70 mA |
| Peak forward current (10 % duty) | 200 mA |
| Forward voltage (typical, 50 mA) | 2.6 – 3.2 V |
| Power dissipation | 225 mW |
| Luminous intensity (typical, 50 mA) | 450 – 700 mcd |
| Dominant wavelength (typical, 50 mA) | 584 – 596 nm |
| Operating temperature range | -40 °C to +100 °C |
The LED has a 120° viewing angle.
It can operate from –40 °C up to +100 °C.
The typical forward voltage is between 2.6 V and 3.2 V at 50 mA.
A standard 7‑inch reel holds 2000 pieces.
