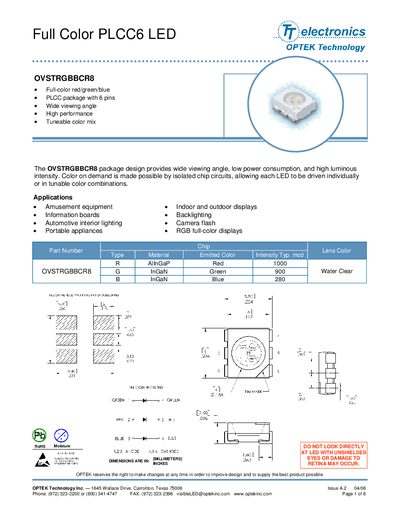

OVSTRGBBCR8 is a full-color PLCC6 LED from OPTEK. It has red, green and blue colors and a PLCC package. It has a wide viewing angle, high performance and can be tuned to a variety of colors.
The OVSTRGBBCR8 is a full‑color red/green/blue PLCC6 LED designed for wide viewing angles and low power consumption. It is used in amusement equipment, indoor and outdoor displays, automotive interior lighting, camera flash, portable appliances, and RGB full‑color displays.
The datasheet provides absolute maximum ratings, electrical characteristics, luminous intensity, dominant wavelength, and packaging details such as reel dimensions (2000 pieces per reel) and moisture‑resistant packaging.
| Package type | PLCC6 |
|---|---|
| Viewing angle | Wide |
| Operating Temperature | -40 °C to +100 °C |
| Reverse Voltage | 5 V |
| Continuous Forward Current (R,G,B) | 80 mA |
| Peak Forward Current (10% duty, R) | 200 mA |
| Luminous Intensity (Red) | 1000 lm |
| Reel quantity | 2000 pcs per reel |
The LED operates from –40 °C to +100 °C.
Each color channel can handle a continuous forward current of 80 mA.
A standard reel contains 2000 pieces.
