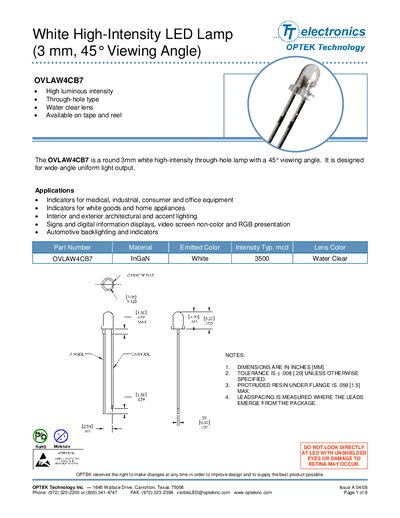

This document is the OVLAW4CB7 LED product datasheet of OPTEK company. It mainly introduces the characteristics of the product, including high luminous intensity, through-hole type, water crystal lens, available on tape and reel. The product is used for various indicators of medical, industrial, consumer and office equipment, white household appliances indicators, architectural and accent lighting etc.
The OVLAW4CB7 is a round 3 mm white high‑intensity through‑hole LED lamp with a 45° viewing angle. It is intended for indicators in medical, industrial, consumer, office equipment, white‑goods, architectural lighting, signage, automotive backlighting and more.
The datasheet lists absolute maximum ratings, typical electrical and optical characteristics, chromaticity bin data, beam pattern, reliability test procedures per MIL‑STD‑750D, and packaging options (bulk or 2000‑piece reel).
| Viewing Angle | 45° |
|---|---|
| Reverse Voltage | 5 V |
| Average Forward Current | 20 mA |
| Power Dissipation | 80 mW |
| Storage Temperature Range | -40 °C to +100 °C |
| Operating Temperature Range | -40 °C to +85 °C |
| LED Junction Temperature | 125 °C |
| Lead Soldering Temperature (max 5 s) | 260 °C |
| Packaging – Bulk | 500 pcs |
| Packaging – Reel | 2000 pcs per reel |
The lamp has a 45° viewing angle.
A standard reel contains 2000 pieces.
