The Power Line Designer Kit 0.5-Watt LED Modules OVPL5W3K is a flexible and scalable lighting solution using mid-power LEDs to supply high luminous flux without additional heatsinking requirements. The kit includes components and instructions to allow a designer to configure LED placement as needed for uniform illumination in his application. With a 15-volt power supply, the Power Line Kit is a total lighting solution.

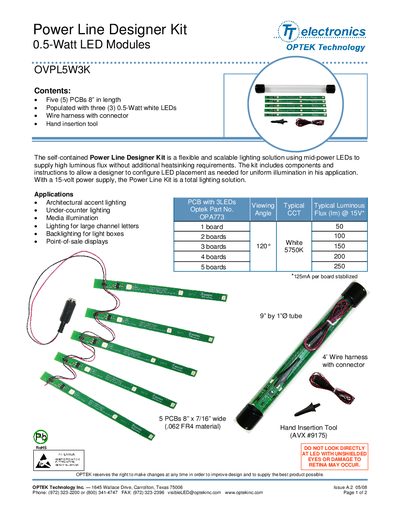

The Power Line Designer Kit includes five 8‑inch PCBs populated with three 0.5‑Watt white LEDs each, a wire harness with connector, and a hand insertion tool. Designed for flexible, scalable lighting, the kit works with a 15‑V power supply to deliver high luminous flux without additional heatsinking.
The manual outlines step‑by‑step assembly: determine board positions, peel tape backing, attach boards to the backplane, route the wire harness, and connect to a 15‑V supply (minimum 1.0 A). It also lists electrical characteristics, temperature limits, and connector dimensions for proper installation.
| Power Supply Voltage | 15 V |
|---|---|
| Minimum Supply Current | 1.0 A |
| Current per Board | 425 mA |
| Operating Temperature Range | -40 °C to +100 °C |
| ESD Threshold (HBM) | 2000 V |
| Board Dimensions | 8 in x 7/16 in |
| Output Connector Size | 2.5 mm ID / 5.5 mm OD |
A 15‑volt power supply with at least 1.0 A minimum is required.
Each board is populated with three 0.5‑Watt white LEDs.
The kit can be stored and operated between –40 °C and +100 °C.
Each board draws approximately 425 mA when stabilized.
