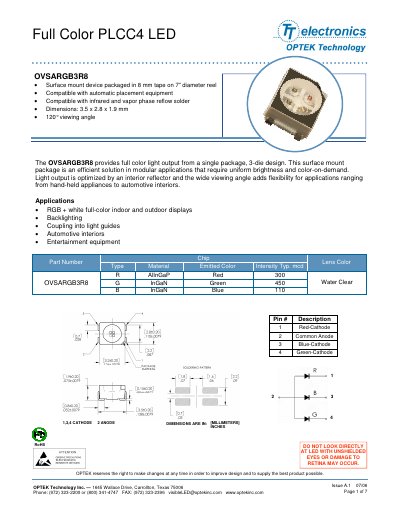

OVSARGB3R8 is a full-color PLCC4 LED from OPTEK. It has a size of 3.5 x 2.8 x 1.9 mm, a viewing angle of 120°, and is compatible with infrared and vapor phase reflow solder. It can be used in applications such as handheld appliances and automotive interiors.
The OVSARGB3R8 is a full‑color PLCC4 surface‑mount LED that combines red, green, blue and white dies in a single package. Its compact size and 120° viewing angle make it suitable for indoor and outdoor displays, backlighting, light guides, automotive interiors and entertainment equipment.
This datasheet lists the LED's mechanical dimensions, electrical parameters such as forward voltage and luminous intensity, temperature ranges, and maximum current ratings. It also includes binning information, typical electro‑optical curves, CIE color graphs, and packaging details like reel size and moisture‑resistant labeling.
| Package dimensions | 3.5 x 2.8 x 1.9 mm |
|---|---|
| Viewing angle | 120° |
| Typical forward voltage (Red) | 2.3 V |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Power dissipation (Red) | 130 mW |
| Continuous forward current (Red) | 50 mA |
| Reel dimensions | 7‑inch reel |
The LED measures 3.5 mm × 2.8 mm × 1.9 mm.
The typical forward voltage for the red die is 2.3 V.
The LED provides a 120° viewing angle.
It operates from –40 °C up to +100 °C.
