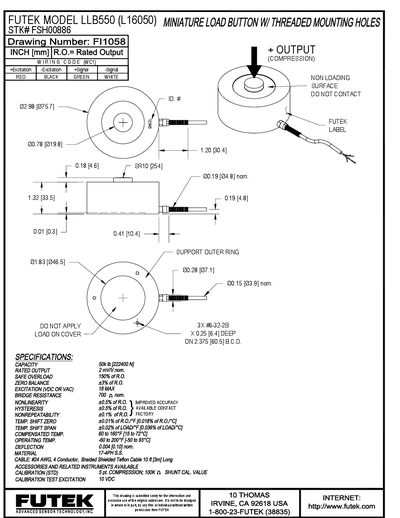

FUTEK MODEL LLB550 (L16050) Data Sheet
The LLB550 is a miniature load button with threaded mounting holes, designed for compression load measurement. It provides a rated output of 2 mV/V and includes a four‑wire connection (red, black, green, white) for excitation and signal.
The sheet details electrical specifications such as a 50 kΩ capacity, 700 Ω bridge resistance, and temperature‑compensated performance from –60 °F to 200 °F. It also lists recommended cable (#24 AWG, 4‑conductor braided shielded Teflon, 10 ft) and available accessories and calibration options.
Futek L16050 specifications
| Capacity | 50 kΩ |
|---|---|
| Rated Output | 2 mV/V nominal |
| Safe Overload | 150 % of R.O. |
| Zero Balance | ±3 % of R.O. |
| Excitation Voltage | 18 V max (DC or AC) |
| Bridge Resistance | 700 Ω nominal |
| Nonlinearity | ±0.5 % of R.O. |
| Hysteresis | ±0.5 % of R.O. |
| Nonrepeatability | ±0.1 % of R.O. |
| Temperature Shift Zero | ±0.01 % of R.O/°F (0.018 %/°C) |
| Temperature Shift Span | ±0.02 % of LOAD/°F (0.036 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -60 °F to 200 °F (-50 °C to 93 °C) |
| Deflection | 0.004 % nominal |
| Material | 17‑4PH 8.8 |
| Cable | #24 AWG, 4‑conductor, braided shielded Teflon, 10 ft (3 m) |
All Futek L16050 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated output of the LLB550 sensor?
The rated output is 2 mV/V nominal.
What is the maximum excitation voltage for the sensor?
The sensor can be excited with up to 18 V (DC or AC).
What is the wiring code for the LLB505 sensor?
The wiring code (WC1) uses +Excitation, -Excitation, +Signal, -Signal with RED, BLACK, GREEN, WHITE leads, a shield, and a floating connection.
What is the rated output of the LLB505?
The rated output is 2 mV/V nominal.
