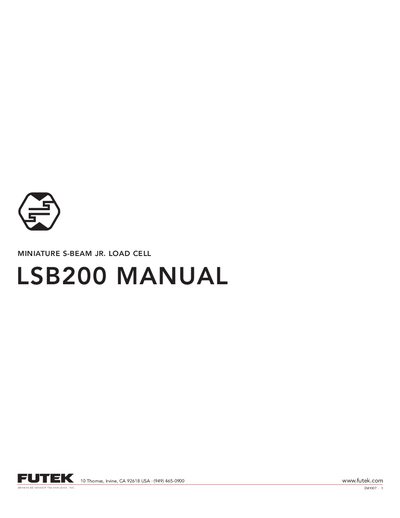

The FUTEK LSB200 Miniature S‑Beam Load Cell manual provides installation, wiring, calibration, and troubleshooting instructions.
This manual covers the proper handling, installation, and wiring of the FUTEK LSB200 Miniature S‑Beam Load Cell. It includes safety precautions such as removing the shunt before loading and keeping the cover away from the measuring end.
The guide also offers troubleshooting steps for issues like no output, incorrect output, and sensor damage, with advice on checking wiring, power, cable condition, and environmental factors.
| Temperature zero shift | ±0.01% of R.O./°F |
|---|---|
| Temperature span shift | ±0.02% of Load/°F |
| Cable bend radius | 0.80 in |
Install the sensor right side up, referencing the label for best results.
Verify wiring and power connections, inspect the cable for damage, and ensure the sensor has not been exposed to excessive temperature or moisture.
