This is a specification sheet for a resistance pressure sensor

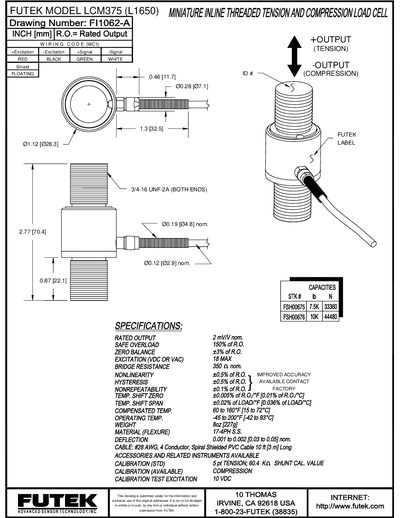

The LCM375 (L1650) is a miniature inline threaded load cell designed for both tension and compression measurements. It features a stainless‑steel flexure, a 4‑conductor shielded cable, and a compact threaded mounting for easy integration.
Key specifications include a rated output of 2 mV/V, safe overload of 150% of rated output, operating temperature range from –45 °F to 200 °F, and a weight of 80 oz. The sheet also lists wiring codes, available capacities, and calibration options for both tension and compression applications.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150% of rated output |
| Zero Balance | 43% of rated output |
| Excitation Voltage | 18 V max (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | ≤0.5% of rated output |
| Hysteresis | ≤0.5% of rated output |
| Nonrepeatability | ≤0.1% of rated output |
| Temperature Shift Zero | 0.005% of R.O./°F (0.01%/°C) |
| Temperature Shift Span | 0.02% of load/°F (0.036%/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -45 °F to 200 °F (-42 °C to 93 °C) |
| Weight | 80 oz (2279 g) |
| Flexure Material | 17‑4PH stainless steel |
| Deflection | 0.001 to 0.002 in (0.03 to 0.05 mm) nominal |
| Cable | #28 AWG, 4‑conductor spiral‑shielded PVC, 10 ft (3 m) |
The rated output is 2 mV/V nominal.
The load cell operates from –45 °F to 200 °F (‑42 °C to 93 °C).
The maximum excitation voltage is 18 V, either DC or AC.
