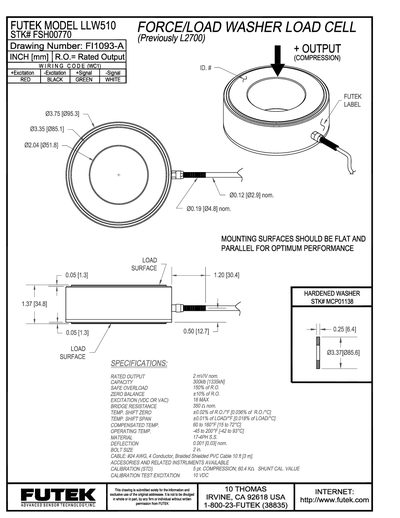

This handbook describes the Futek LLWS10 force/load washer load cell, including its rated output, capacity, and environmental limits. Key specifications such as rated output (2 mV/V), capacity (300 kIb), and temperature ranges are listed.
The document also provides wiring connections, recommended mounting surface conditions, cable details, and calibration procedures. Accessories and related instruments are noted, and contact information for Futek support is included.
| Rated Output | 2 mV/V nominal |
|---|---|
| Capacity | 300 kIb (1335 kN) |
| Safe Overload | 150 % of rated output |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | -45 °F to 200 °F (‑42 °C to 93 °C) |
| Cable | #24 AWG, 4‑conductor, braided shielded PVC, 10 ft |
The rated output is 2 mV/V nominal.
The load cell can be excited with up to 18 V (DC or AC).
Mounting surfaces should be flat and parallel for optimum performance.
Use a #24 AWG, 4‑conductor, braided shielded PVC cable, 10 ft long.
