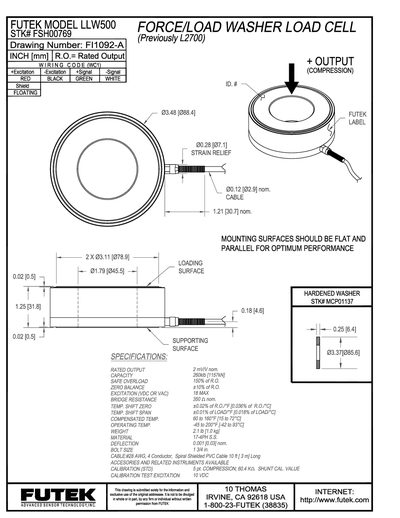

The LLW500 is a force/load washer load cell designed for precise measurement of compression forces. It features a hardened washer and a stainless‑steel construction for durability.
The handbook lists the rated output, capacity, temperature compensation, wiring code (red, black, green, white, shield), and recommended mounting surface. It also includes cable specifications and calibration information.
| Rated Output | 2 mV/N nominal |
|---|---|
| Capacity | 260 kN nominal |
| Safe Overload | 150 % of rated output |
| Zero Balance | ±10 % of rated output |
| Excitation (VDC or VAC) | Up to 18 V |
| Bridge Resistance | 350 Ω nominal |
| Temperature Shift Zero | ±0.02 % of R.O./°F (0.036 %/°C) |
| Temperature Shift Span | ±0.01 % of load/°F (0.018 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | 45 °F to 200 °F (‑42 °C to 93 °C) |
| Weight | 2.1 lb (1.0 kg) |
| Material | 17‑4PH stainless steel |
| Deflection | 0.001 in (0.03 mm) nominal |
| Bolt Size | 13/4 in. |
| Cable | 28 AWG, 4‑conductor, spiral‑shielded PVC, 10 ft |
The LLW500 has a rated output of 2 mV per newton (nominal).
The load cell can measure up to 260 kN nominal.
The wiring code uses red, black, green, white, and a shield connection.
Mounting surfaces should be flat and parallel for optimum performance.
