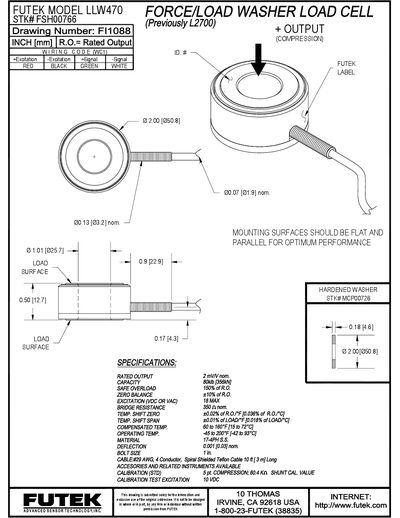

This document is an instruction manual for FUTEK MODEL LLW470, describing the features and performance of the product.
This document details the technical specifications of the Futek LLW470 force/load washer load cell. It includes wiring codes, mounting recommendations, calibration procedures, and accessory information.
Key specifications include a rated output of 2.00 (250.8), a capacity of 80kIb (356 kN), safe overload of 150% of rated output, excitation voltage of 10 VDC, bridge resistance of 350 Ω, and an operating temperature range of 60‑160 °F (15‑72 °C).
| Rated Output (Compression) | 2.00 (250.8) |
|---|---|
| Capacity | 80kIb (356 kN) |
| Safe Overload | 150% of R.O. |
| Zero Balance | 210% of R.O. |
| Bridge Resistance | 350 Ω nominal |
| Temp. Shift Zero | 10.02% of R.O. per °F (0.036% per °C) |
| Temp. Shift Span | 40.01% of LOAD per °F (0.018% per °C) |
| Operating Temperature | 60‑160 °F (15‑72 °C) |
| Material | 17‑4PH S.8. |
| Deflection | 0.001 (0.03) nominal |
| Cable | #29 AWG, 4‑conductor, spiral shielded Teflon, 10 ft (3 m) |
The rated output is 2.00 (250.8).
The capacity is 80kIb (356 kN).
It operates from 60 °F to 160 °F (15 °C to 72 °C).
