FUTEK LLW480 Pressure Sensor Specifications Manual

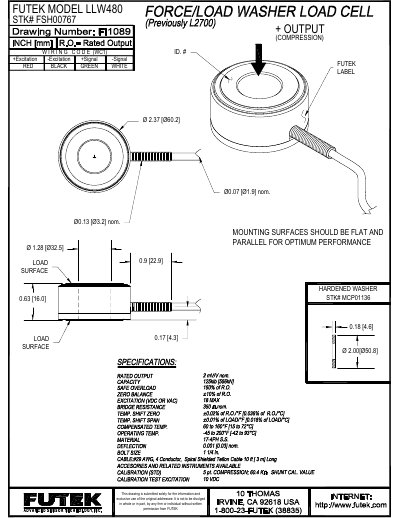

This document is the part drawing of FUTEK LLW480.

Brand: Futek
Category: pressure transmitters
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 143 KB
Published: 12 April, 2012
Updated: 01 October, 2023
MD5 checksum: A61F1A95B5607A2270F463CFECCB744E
PDF: FUTEK LLW480 Pressure Sensor Specifications Manual PDF

About this manual

This manual details the physical dimensions, wiring colors, and mounting requirements for the FUTEK LLW480 pressure sensor. It also lists the stock numbers and other technical data needed for proper installation and use.

What's inside

Wiring Code
Load Surface
Mounting Surfaces
Dimensions
Technical Parameters

Specifications

Load surface requirement	Flat and parallel
Stock number	MCP01136

Frequently asked questions

How should the mounting surfaces be prepared?

Mounting surfaces should be flat and parallel for optimum performance.

What is the stock number for the LLW480 sensor?

The stock number is MCP01136.
