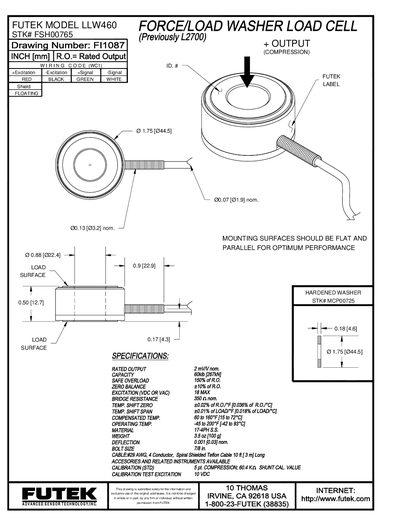

This document is a drawing submitted by FUTEK, which describes the features and characteristics of the FUTEK MODEL LLW460 product.
The LLW460 is a force/load washer load cell designed for compression measurements. It features a flat, parallel mounting surface for optimal performance and includes a four‑wire connection (red, black, green, white) with a floating shield.
Key specifications include a rated output of 2 mV/N, a capacity of 60 kN, excitation up to 18 V, operating temperatures from 45 °F to 200 °F, and a hardened washer construction. Calibration, accessories, and wiring details are also provided.
| Rated Output | 2 mV/N nominal |
|---|---|
| Capacity | 60 kN (267 kN max) |
| Safe Overload | 150 % of rated output |
| Excitation Voltage | 18 V max (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | 45 °F to 200 °F (42 °C to 93 °C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Cable | 29 AWG, 4‑conductor, spiral‑shielded Teflon, 10 ft (3 m) |
The rated output is 2 mV per newton (nominal).
The load cell can be excited with up to 18 V (DC or AC).
It operates from 45 °F to 200 °F (42 °C to 93 °C).
