P2200 is a brushless DC motor with a maximum speed of 600 Min-1, rated voltage of 42 V, rated current of 1 A, motor output torque of 0.003 Ncm, maximum torque of 0.0012 Ncm, torque accuracy of ±0.01%, speed accuracy of ±0.004%, coil resistance of 345 mΩ, temperature rise of 5 K, rotational inertia of 0.0012(±0.004 g) kg m2, bearing life of 100 x 106 times, and protection class of IP50.

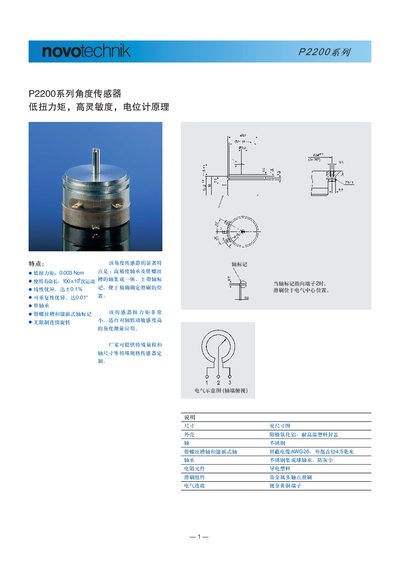

This manual describes the P2200 series angle sensor, highlighting its low torque (under 0.003 Nm), high precision, and long service life of up to 10⁷ cycles. It details the sensor's mechanical construction, including stainless‑steel shaft and integrated ball bearing, and explains the electrical connection using gold‑plated terminals.
Installation guidance covers the use of three Z1‑11 clamps, a continuous 360° travel, and recommended mounting hardware. The document also lists environmental limits such as operating temperature from –40 °C to +100 °C, vibration resistance from 5 Hz to 2000 Hz, and an IP50 protection rating. This manual is written in Chinese.
| Maximum torque | 0.003 Nm |
|---|---|
| Repeatability | 0.01° |
| Maximum supply voltage | 42 V |
| Maximum brush current | 10 mA |
| Insulation resistance | >10 MΩ |
| Operating temperature range | -40 °C to +100 °C |
| Vibration resistance frequency range | 5 Hz to 2000 Hz |
| Mechanical life | 10⁷ cycles |
| Protection rating | IP50 |
The sensor’s maximum torque is less than 0.003 Nm.
The sensor offers a repeatability of 0.01°.
It can operate from –40 °C up to +100 °C.
The maximum working voltage is 42 V.
