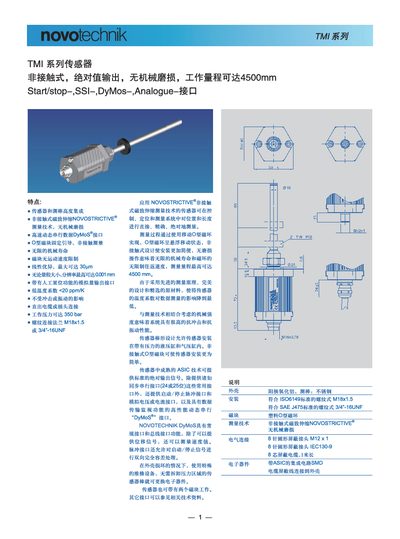

The TMI series sensors from Novotechnik are non‑contact, absolute‑output devices with no mechanical wear and a measurement range up to 4500 mm. They offer multiple electrical interfaces such as Start/Stop pulse, SSI, DyMoS and analog voltage/current, and feature a low temperature coefficient and high impact/vibration resistance.
The manual includes model definitions, electrical and mechanical parameters, wiring diagrams, connector pin assignments, ordering information, and important installation notes such as using shielded twisted‑pair cables for signal transmission. This manual is written in Chinese.
| Resolution | 0.001 mm |
|---|---|
| Temperature coefficient | <20 ppm/K |
| Maximum working pressure | 350 bar |
| Output interfaces | Start/Stop pulse, SSI, DyMoS, analog voltage/current |
It provides a resolution as fine as 0.001 mm.
The sensor is rated for a working pressure of up to 350 bar.
It offers Start/Stop pulse, SSI, DyMoS, and analog voltage/current interfaces.
