This document is the specification of T/TS series accelerometers. It mainly includes product brand, model, size, weight, voltage, resolution, accuracy, sensitivity, linearity, repeatability, temperature compensation, static output, dynamic output, static swing, dynamic swing, frequency response, impact impact, vibration impact, pressure resistance, waterproof and other parameters.

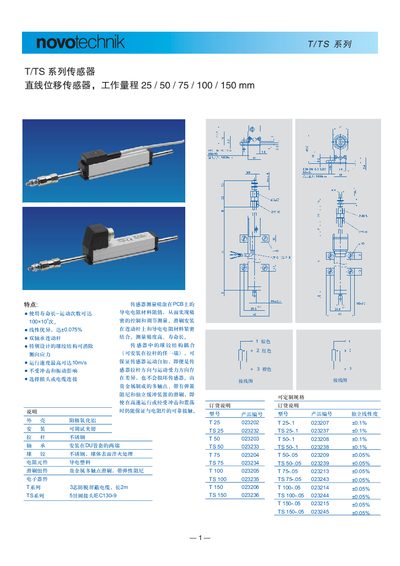

This manual describes the Novotechnik T and TS series linear displacement sensors, covering mechanical construction, electrical parameters, and ordering information. It includes detailed tables of working ranges, resistance values, linearity, and environmental limits.
Installation guidance, wiring diagrams, and recommended accessories such as connectors and mounting clamps are provided, along with safety and durability notes for high‑speed operation and shock resistance. This manual is written in Chinese.
| Working range | 25‑150 mm |
|---|---|
| Standard resistance | 1 kΩ (T) / 5 kΩ (TS) |
| Resistance tolerance | ±20 % |
| Independent linearity | 0.075 % (T150, TS150) |
| Repeatability | 0.002 mm |
| Maximum working voltage | 42 V |
| Insulation resistance | 10 MΩ @ 500 VDC, 1 bar, 2 s |
| Protection rating | IP40 |
| Weight (with cable) | 140‑220 g |
| Operating temperature range | -30 °C to +100 °C |
| Vibration resistance | 5‑2000 Hz |
| Shock resistance | 50 g, 11 ms |
The sensor is rated IP40.
The maximum allowed working voltage is 42 V.
The repeatability is 0.002 mm.
The sensor operates from –30 °C to +100 °C.
