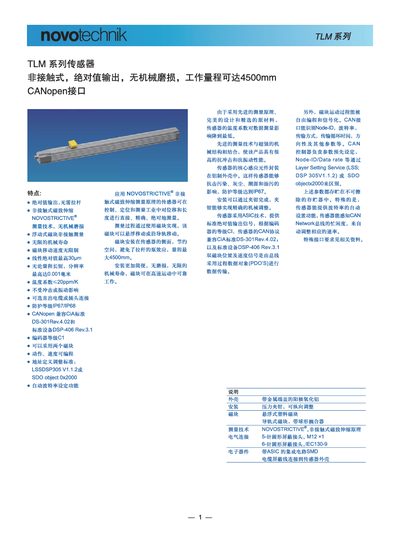

The TLM series sensors are non‑contact magnetic linear sensors with absolute output, no mechanical wear, and a measurement range up to 4500 mm. They feature a floating magnetic block, unlimited block speed, and high resolution of up to 0.001 mm.
The devices use a CANopen interface compatible with CiA DS‑301 Rev.4.02 and DSP‑406 Rev.3.1, support automatic baud‑rate setting, and are rated IP67/IP68 for protection against dust and water. Installation is performed with clamp brackets, and the sensors can be powered from 24 V with a typical current consumption of 100 mA. This manual is written in Chinese.
| Measurement range | 50 mm – 4500 mm |
|---|---|
| Resolution | 0.001 mm |
| Temperature coefficient | 20 ppm/K |
| Protection rating | IP67/IP68 |
| Supply voltage | 24 V DC |
| Output refresh rate | 16 kHz |
| Insulation resistance | 10 MΩ |
The sensor can measure distances from 50 mm up to 4500 mm.
It uses a CANopen interface compatible with CiA DS‑301 Rev.4.02 and DSP‑406 Rev.3.1.
The sensor is rated IP67/IP68, suitable for dusty and wet environments.
The sensor provides a resolution of up to 0.001 mm.
