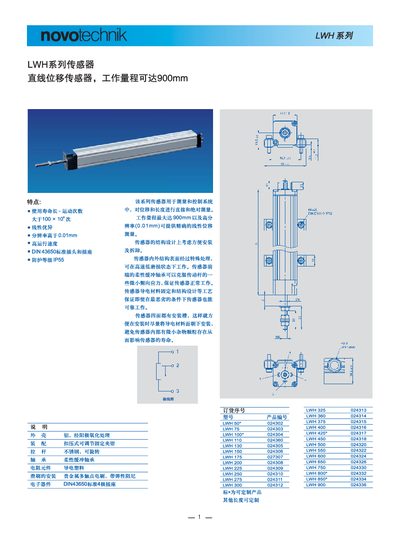

This document describes the LWH series linear displacement sensors, which measure and control linear motion up to 900 mm. It highlights key features such as high resolution (better than 0.01 mm), robust IP55 protection, and a wide temperature range.
The datasheet lists detailed electrical, mechanical, and environmental parameters, as well as ordering numbers and recommended accessories for each sensor length variant. This manual is written in Chinese.
| Repeatability | 0.01 mm |
|---|---|
| Maximum supply voltage | 42 V |
| Protection rating | IP55 |
| Operating temperature range | -30 °C to +100 °C |
| Weight (typical) | 220 g |
It is rated IP55 according to DIN standards.
The sensors operate from –30 °C to +100 °C.
