RSC2800-600/700° is an encoder of RSC series. It has IP54/IP65 protection level, 12 bit resolution and 0.5% precision. The rated voltage is 5V/24V. It can be used to measure angle and speed.
The RSC2800 series is a non‑contact magnetic angle sensor that measures the change in magnetic field direction to determine angular position. It offers a measurement range of 30° to 360° with 10° increments, 12‑bit resolution and a repeatability of 0.5%.

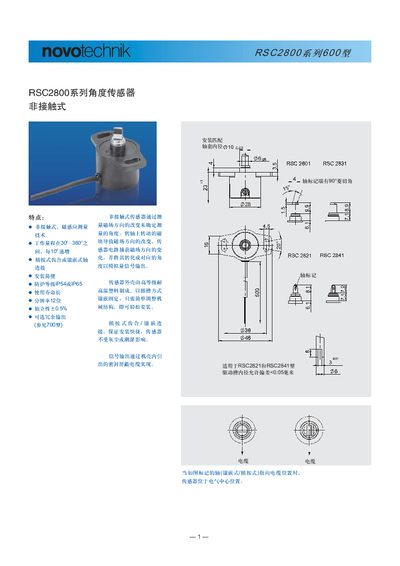

The manual details mechanical installation (plug‑in or screw‑type mounting), electrical parameters (5 VDC or 24 VDC supply, 0‑10 VDC or 4‑20 mA analog output), IP protection ratings (IP54/IP65), and ordering options for different model variants such as RSC2801, RSC2821, RSC2831 and RSC2841. This manual is written in Chinese.
| Measurement range | 30° to 360° |
|---|---|
| Repeatability | 0.5 % |
| Supply voltage | 5 VDC (4.5‑5.5 V) or 24 VDC (18‑30 V) |
| Output signal (5 V version) | 0 VDC – 10 VDC |
| Output signal (24 V version) | 4 mA – 20 mA |
| IP protection rating | IP54 / IP65 |
| Maximum speed | 120 rpm |
| Cable length | ≈500 mm |
It measures angles from 30° to 360°, with each step increasing by 10°.
Standard versions are rated IP54, while optional versions are rated IP65.
