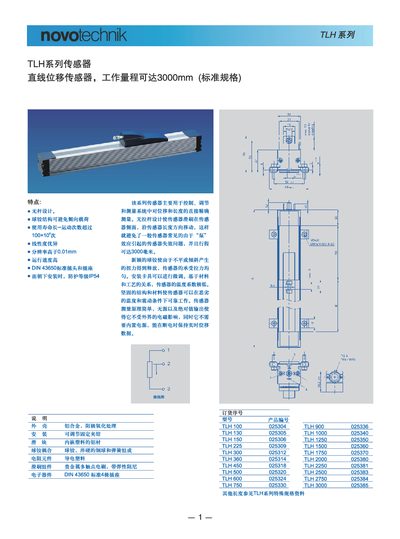

This manual describes the TLH series linear displacement sensors, which offer a rod‑free design, high resolution (better than 0.01 mm), and a travel range up to 3000 mm. It explains the sensor’s operating principle, mechanical construction, and environmental robustness, including IP54 protection and low temperature coefficient.
The document includes model definitions, electrical and mechanical parameters, wiring diagrams, installation guidelines, and a list of recommended accessories. It also provides detailed specifications such as linearity, repeatability, voltage rating, and environmental limits. This manual is written in Chinese.
| Repeatability | 0.01 mm |
|---|---|
| Maximum operating voltage | 42 V |
| Insulation resistance | 10 MΩ (500 VDC, 1 min) |
| IP protection rating | IP54 |
| Operating temperature range | -30 °C to +100 °C |
| Vibration resistance | 5 Hz – 2000 Hz |
| Shock resistance | 50 g |
The sensor is rated IP54 when installed face‑down.
It works reliably from –30 °C to +100 °C.
