The TMI series sensors use non‑contact magnetic‑torsion technology to deliver absolute position measurements without mechanical wear. They feature high linearity, up to 30 µm repeatability, and a resolution as fine as 0.001 mm, with a measurement range up to 4500 mm. The design includes an O‑type magnetic ring that floats, providing unlimited mechanical life and resistance to shock and vibration.

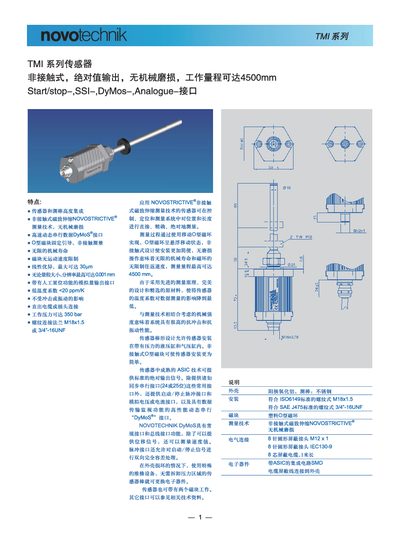

The manual lists electrical interfaces (Start/Stop pulse, SSI, DyMoS, analog voltage/current), mechanical dimensions, environmental limits, and ordering information. It also describes connector types, wiring recommendations, and protection features such as IP67 sealing and over‑voltage protection. This manual is written in Chinese.
| Measurement range | 50 mm – 4500 mm |
|---|---|
| Working pressure | 350 bar |
| Temperature coefficient | < 20 ppm/K |
| Ingress protection | IP67 |
The sensor can measure distances from 50 mm up to 4500 mm.
It supports Start/Stop pulse, SSI, DyMoS, and analog voltage/current interfaces.
The sensor is rated for a working pressure of up to 350 bar.
Yes, it has an IP67 rating for dust and water protection.
