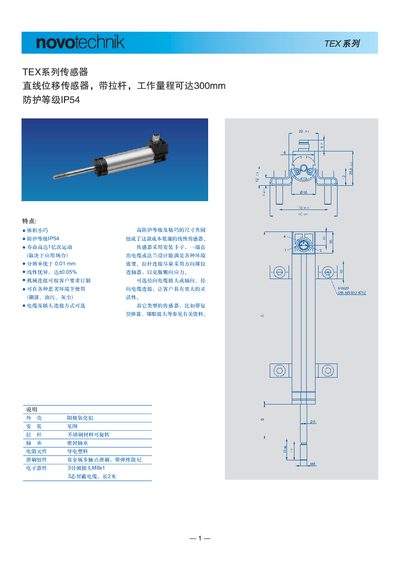

This document describes the features and characteristics of TEX products, including their dimensions, accuracy, protection level, etc.
The TEX series sensors are compact linear displacement sensors with a pull‑rod design, offering a travel range up to 300 mm and an IP54 protection rating. They feature high durability (up to 100 million cycles) and a resolution better than 0.01 mm, making them suitable for harsh environments such as moisture, oil, and dust.
The manual includes electrical parameters, mechanical dimensions, connector options (3‑pin M8×1, various cable lengths), optional accessories, and detailed installation instructions. Ordering codes for different travel ranges and connector types are also listed. This manual is written in Chinese.
| Repeatability | 0.01 mm |
|---|---|
| IP rating | IP54 |
| Maximum voltage | 42 V |
| Maximum current | 10 mA |
| Temperature range | -40 °C … +85 °C |
| Lifetime | >100 million cycles |
The sensor has an IP54 protection rating.
The maximum working voltage is 42 V.
The sensor offers a repeatability of 0.01 mm.
Available connectors include a 3‑pin M8×1 plug and standard cables of 2 m or 5 m length for radial or axial output.
